PlanTrackAnalyze

Core System Capabilities & Distribution

System Capabilities

Managers can create custom Action Templates with tailored fields, site behaviors, and title formulas.

Utilize built-in protected templates including Drive, Load, Unload, Fuel, and Break.
Construct Action titles dynamically from configured tokens like Truck, Site, and custom fields.
Store a snapshot of the template configuration within the Action for historical preservation.

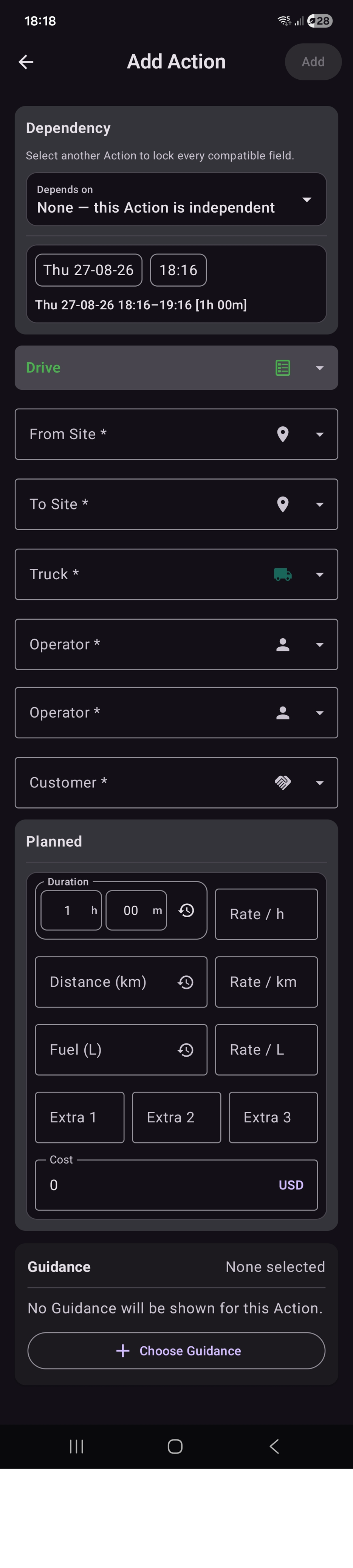

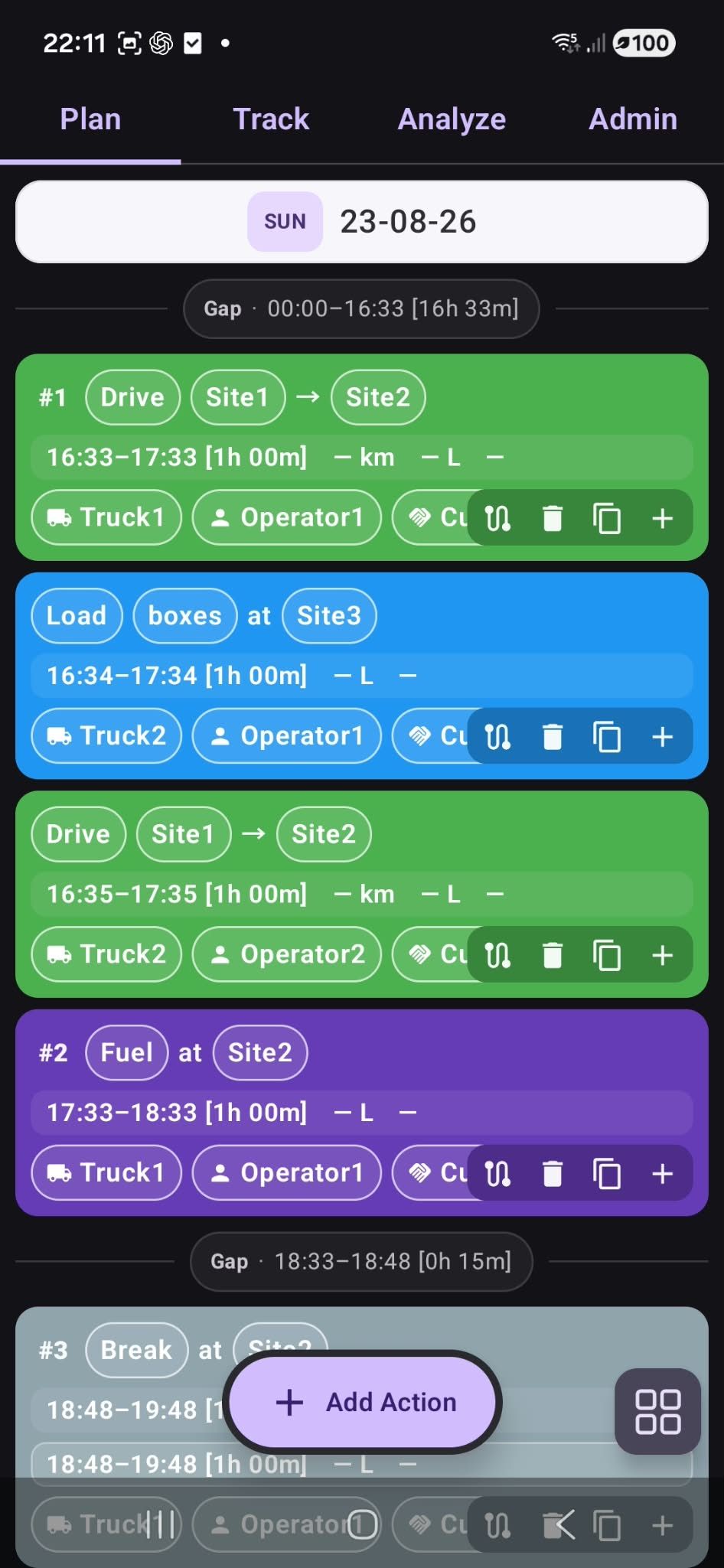

Create and edit Actions in a centralized calendar workspace with planned metrics and cost configurations.

Assign planned dates, durations, and single Operators to specific Actions.
Request historical planning suggestions based on date ranges and comparison criteria.
Calculate planned costs using duration, distance, and manual fuel rates.

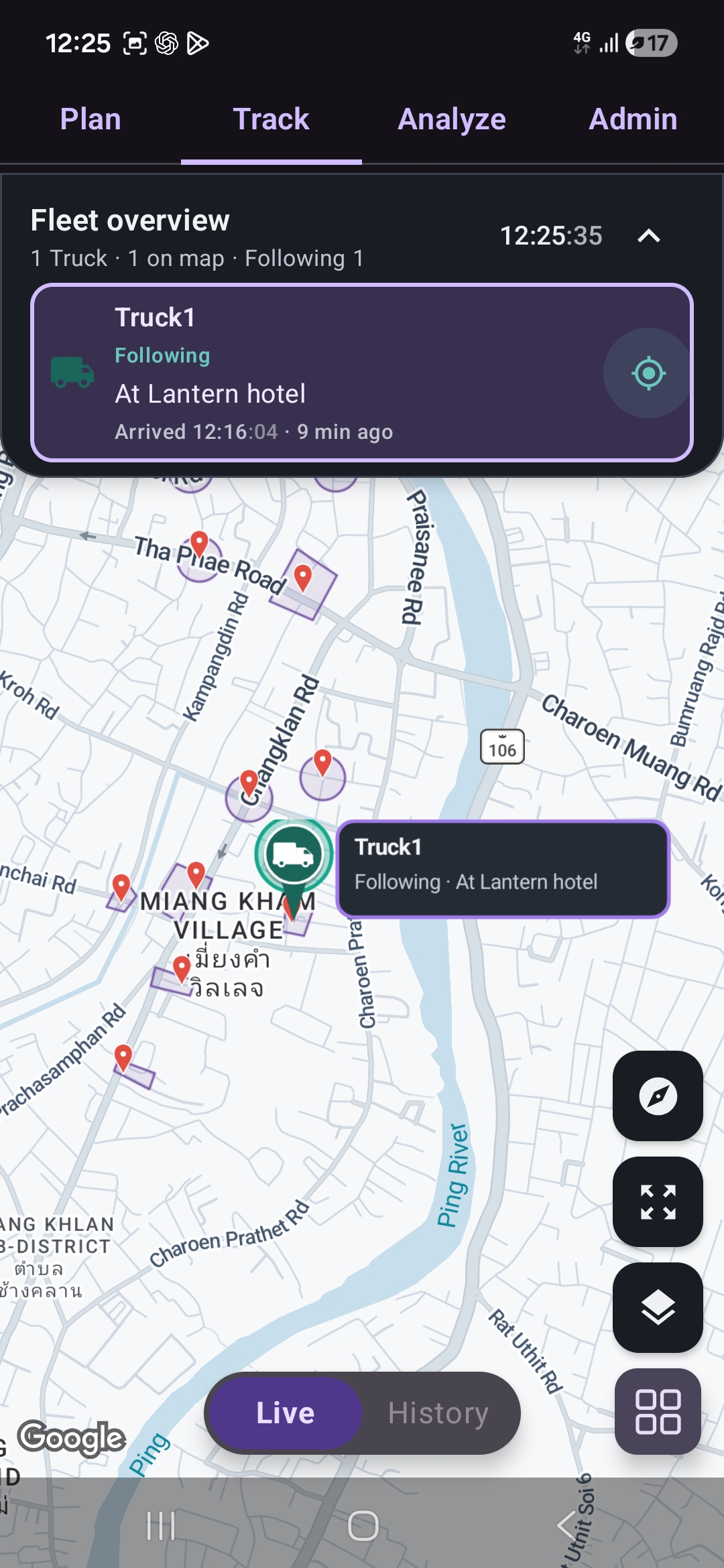

The system automatically processes GPS and accelerometer data into deterministic Stop, Move, and No Data ranges.

Evaluate timezone-aware hourly raw-evidence chunks using spatial rules.
Reject GPS observations with nonpositive accuracy or jumps exceeding 50 meters per second.
Refine GPS classification using high-rate accelerometer sampling targeted around 100 Hz.

Managers can create, read, update, and delete Customers, Sites, Trucks, and Operators.

Add custom fields to management directories using Value, Boolean, Date, and Time types.
Assign trucks to managed phones and apply predefined or custom RGB colors.
Support site addresses with geographic coordinates and Google Places autocomplete.

Create linear Action chains by linking an Action to one prior source Action.

Link compatible fields such as Truck, Customer, and Operator to preceding Actions.
Schedule dependent Actions with a configured nonnegative offset after the preceding Action ends.
Duplicate entire dependent chains and select new starting times.

The platform provides robust L1, L2, and L3 remote recovery workflows orchestrated via Firebase Cloud Messaging.

Execute L1 workflows to repair the managed app and restore authentication.
Execute L2 workflows to transfer Device Owner state and replace the Tracking App via the Recovery App.
Execute L3 workflows to trigger a remote Android Device Owner wipe with explicit manager confirmation.

Issue secure Plan and Track sharing links viewable through the Android application without recipient login.

Authorize shared Plan access by selected Customers and Operators.

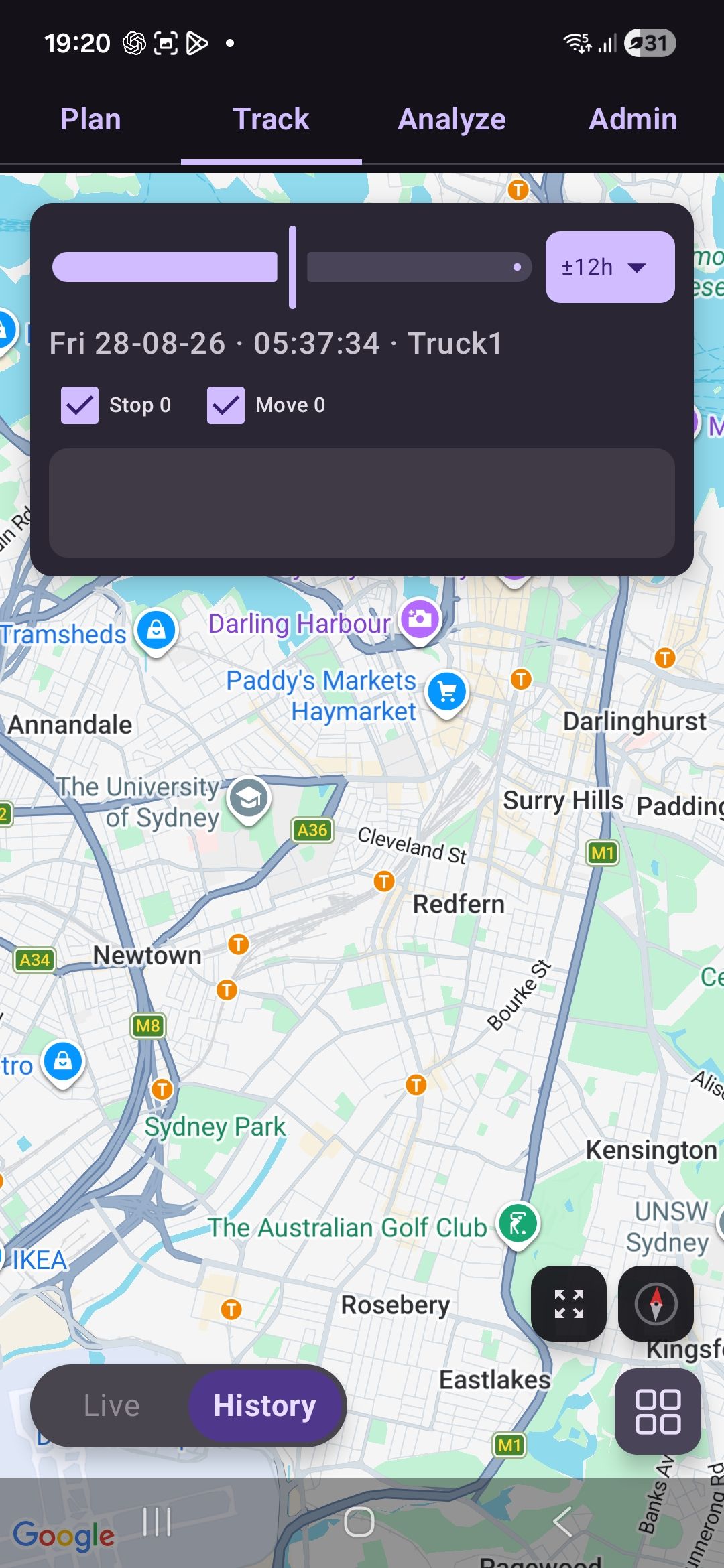

Configure shared Track access using explicit Truck rules and authorized windows.
Export authorized shared history as CSV containing timestamps and coordinates.

Managers can manually associate classified tracking ranges with planned Actions for comprehensive variance analysis.

Derive actual start, end, duration, and distance from manually selected Stop and Move ranges.

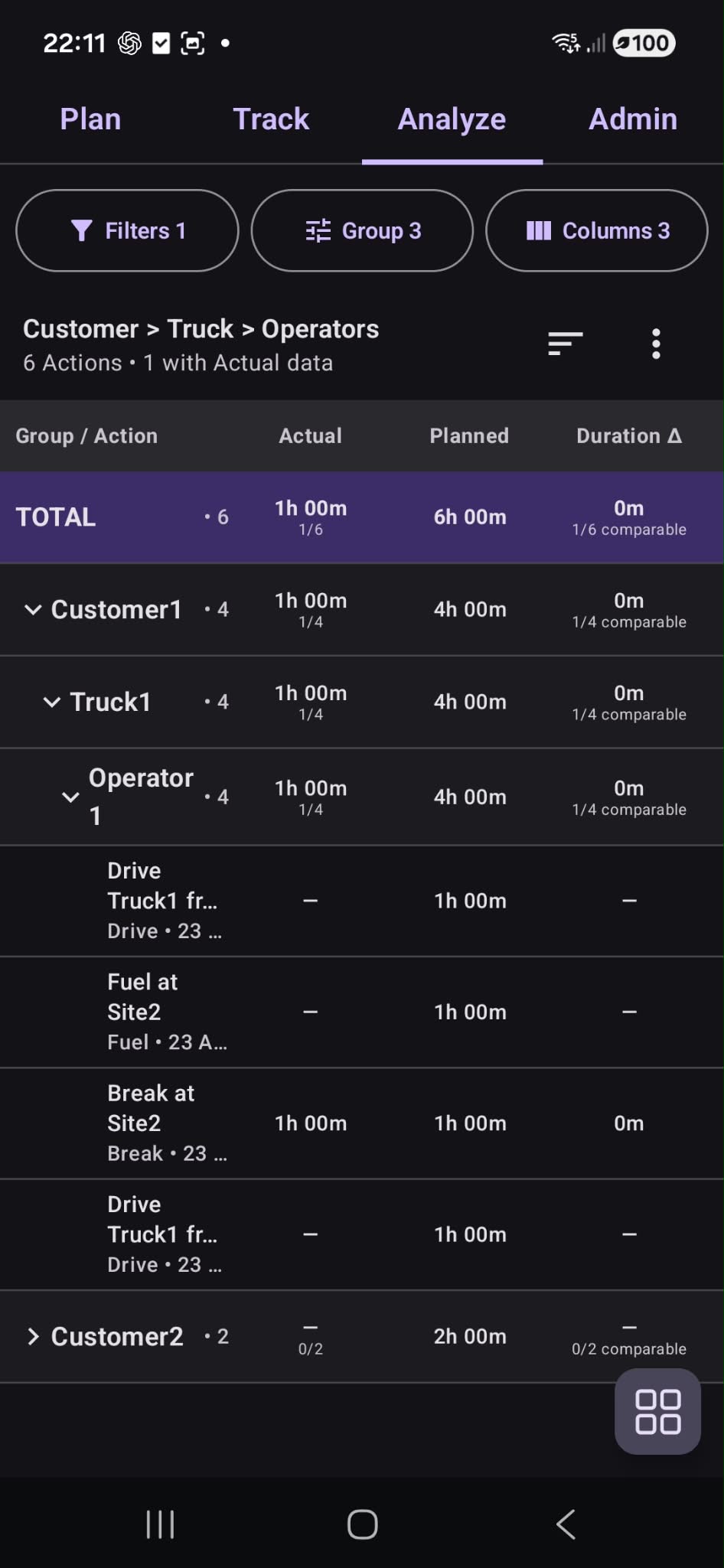

Group analysis across up to three nested dimensions including Template, Customer, and Truck.
Aggregate analysis columns using sums, earliest/latest values, and coverage counts.

Device Owner & Recovery Management

A specialized secondary application used to facilitate Device Owner state transfers and execute L2/L3 remote recovery workflows.

Primary Operator Interface

The primary Android application deployed to fleet devices for real-time tracking, action execution, and deterministic evidence collection.
